Wallet User Guide — Screens → API

This guide walks through the consumer wallet web app screen by screen, and maps each screen (and the actions on it) to the exact Wallet API endpoints that power it. Hand it to a client so they know which API to call, with what payload, for each thing the user sees.

The screenshots below are from a live demo tenant — GoMart (X-Tenant-Code: GOMART), a white-label deployment at https://gomart-app.wallet.dev.gohubpay.com.my. Branding (name, logo, colors) is per-tenant; the API surface is identical for every tenant.

How auth works in the app

Every request carries two things: a Bearer JWT (Authorization: Bearer <accessToken>) and the tenant selector X-Tenant-Code. The web app resolves the tenant from its host (<subdomain>-app.wallet…) and obtains the JWT from POST /auth/login. Every mutating call also sends an Idempotency-Key (UUID) header. See Getting Started for the base URL + auth details.

---

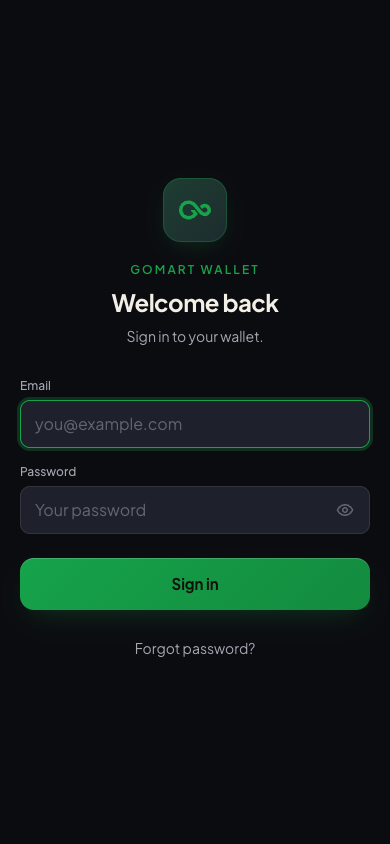

1. Login

The entry screen. The user signs in with email + password; the app exchanges them for an access token. First-time users arrive by an emailed invite link and set their password before they can sign in at all.

APIs — Authentication

• POST /auth/login — { "email", "password" } + header X-Tenant-Code. Returns accessToken and expiresIn, and sets the refresh cookie. A login either succeeds or fails; there is no challenge state to handle.
• POST /auth/invite/complete — sets the first password: { "token", "newPassword" }. The token comes from the invite email and is single-use. → 204, then sign in normally.
• GET /auth/password-policy — drives the live password-rule hints.
• POST /auth/forgot-password — "Forgot password?" link; emails a reset link.

---

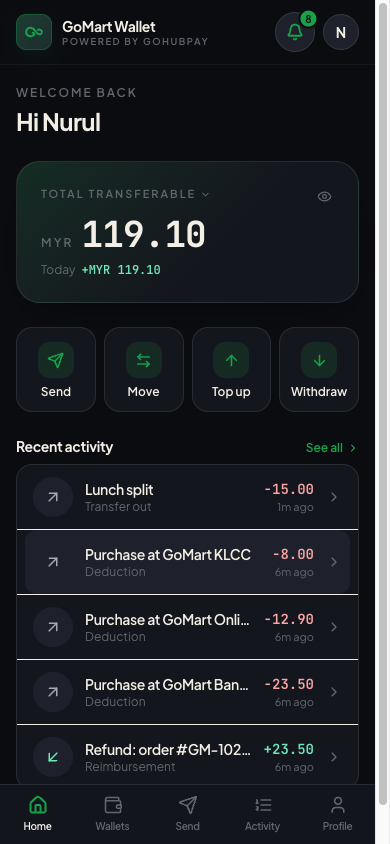

2. Home

The landing screen after login: greeting, total transferable balance, quick actions (Send / Move / Top up / Withdraw), the unread-notification badge, and a recent-activity feed.

APIs — Wallets, Transactions, Notifications

• GET /wallets/summary — the headline total across the user's wallets.
• GET /wallets — wallet cards / balances.
• GET /transactions?size=5 — the "Recent activity" list.
• GET /me/notifications/unread-count — the bell badge (here: 8).

The four quick-action buttons are deep links to the Send, Top-up and Withdraw screens below.

---

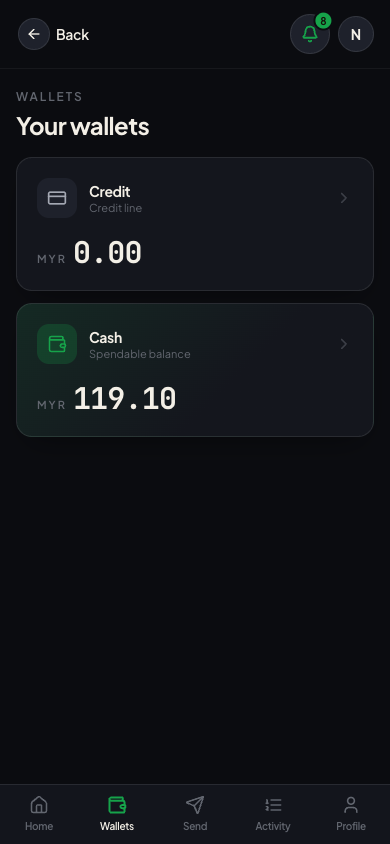

3. Wallets

Lists every wallet the user holds — typically a CASH (spendable earnings) wallet and a CREDIT (obligation) wallet. Which types exist is configured per tenant.

APIs — Wallets, Wallet Capabilities

• GET /wallets — the list, each with walletType, status, balance.
• GET /me/wallet-types — which wallet types + actions (peer-transfer, move, top-up) are enabled for this user, so the UI shows only allowed actions.

---

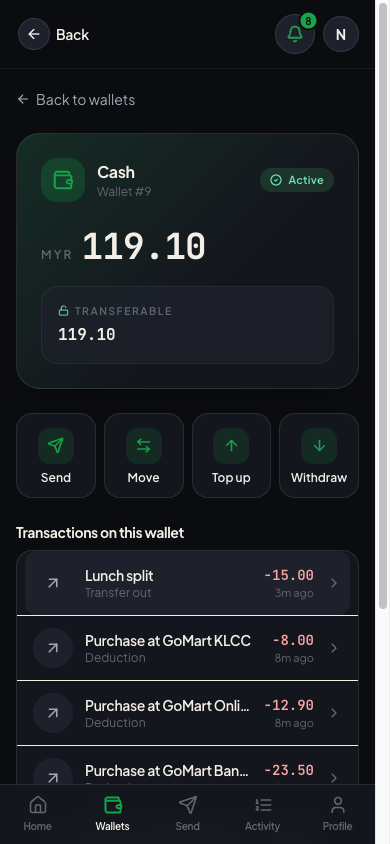

4. Wallet detail — CASH

A single wallet's balance, its fund buckets (TRANSFERABLE / NON_TRANSFERABLE), and its transaction history scoped to that wallet.

APIs — Wallets, Transactions

• GET /wallets/{walletId} — header + status.
• GET /wallets/{walletId}/balance — the live balance.
• GET /wallets/{walletId}/funds — the per-bucket breakdown.
• GET /transactions?walletId={walletId} — this wallet's activity.

---

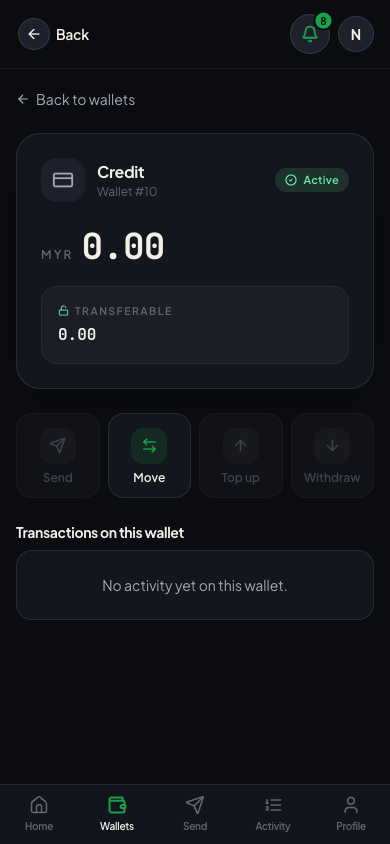

5. Wallet detail — CREDIT (empty state)

The same detail screen for a wallet with no movements yet — the empty state. Same endpoints as above; the history list simply returns no rows.

APIs — identical to §4. GET /transactions?walletId={id} returns an empty page.

---

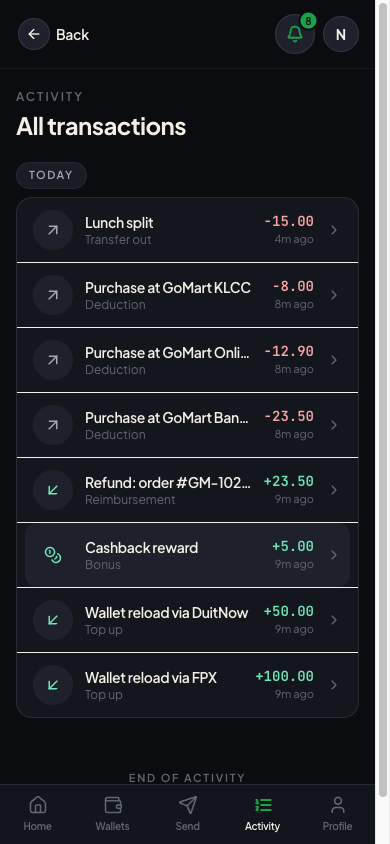

6. Activity

The full, paginated transaction history across the user's wallets — top-ups, purchases (deductions), refunds, cashback, transfers.

APIs — Transactions

• GET /transactions?page={n}&size={n} — paged history. Each row carries transactionType, amount, description, status, createdAt. Tapping a row opens its detail (§7).

---

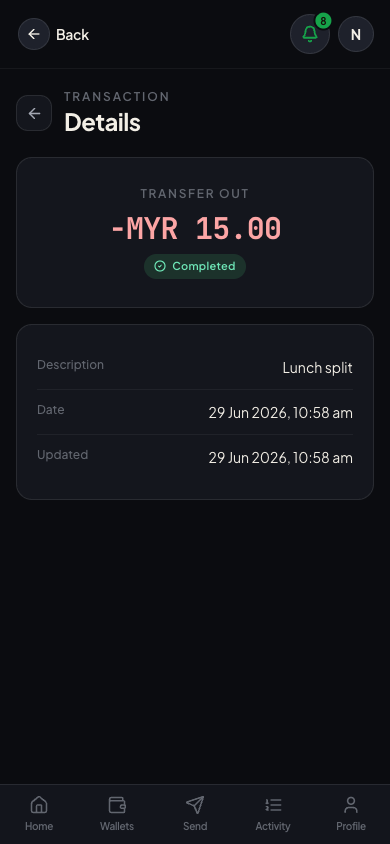

7. Transaction detail

One transaction in full — amount, type, status, counterparty, timestamps, and — for gateway-backed movements (top-up / withdrawal) — the payment-gateway block (provider, gateway txn id, our reference, status) used to reconcile against the gateway.

APIs — Transactions

• GET /transactions/{transactionId}/detail — the full record including the gateway block (provider, gatewayTransactionId, reference, status, method, beneficiaryName, failureReason). For a non-gateway transaction the gateway block is null.

---

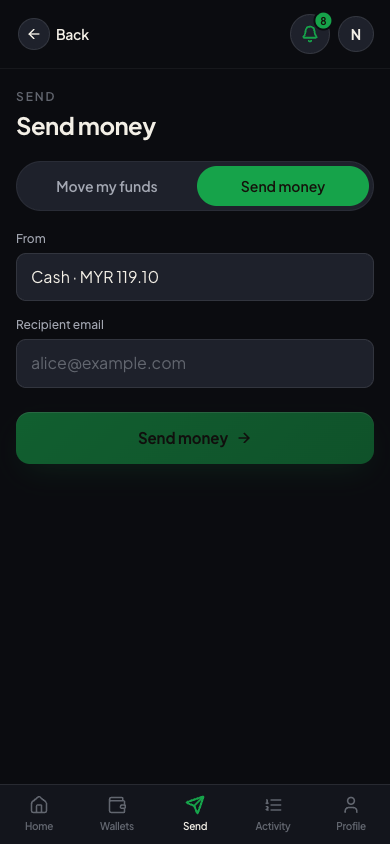

8. Send money — recipient lookup

Pick the source wallet and enter the recipient's email. The app pre-validates the recipient on blur — before any money moves.

APIs — Transfers

• GET /transfers/lookup-recipient?email=... — always 200; the body's found + canReceive flags carry the answer (anti-enumeration design — no recipient details leak for unknown emails).

---

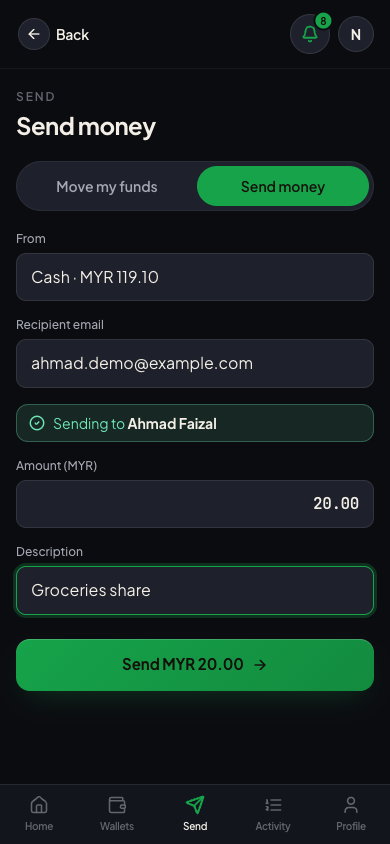

9. Send money — recipient resolved

Once the recipient resolves ("Sending to Ahmad Faizal"), the amount + description fields appear and the user can confirm. The backend resolves the recipient's ACTIVE CASH wallet — the caller never names a wallet id (prevents tampering).

APIs — Transfers

• POST /transfers/peer — { "sourceWalletId", "recipientEmail", "amount", "description" } + Idempotency-Key. Atomic two-leg transfer (FUND_TRANSFER_OUT + FUND_TRANSFER_IN).

---

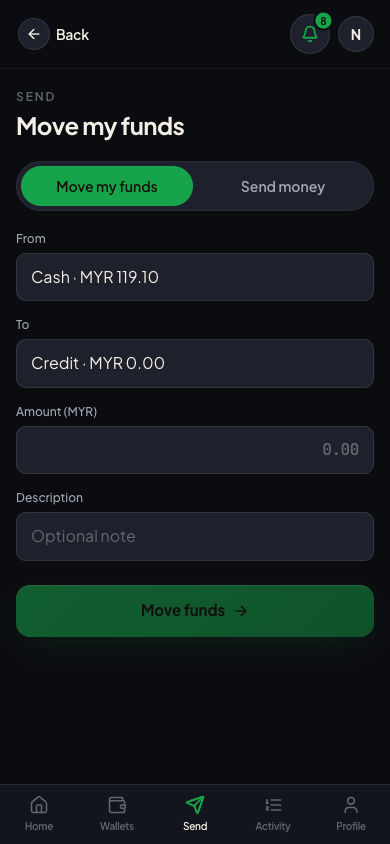

10. Move my funds

The "Move" tab of the same screen — an atomic transfer between the user's own two wallets (defaults to CASH → CREDIT), rather than to another person. Requires at least two ACTIVE wallets whose types allow moving (canMove).

APIs — Transfers

• POST /transfers — { "sourceWalletId", "targetWalletId", "amount", "description" } + Idempotency-Key. Both wallets must belong to the caller. Optional sourceFundType / targetFundType choose the fund buckets (default TRANSFERABLE). Posts a linked FUND_TRANSFER_OUT + FUND_TRANSFER_IN pair.

---

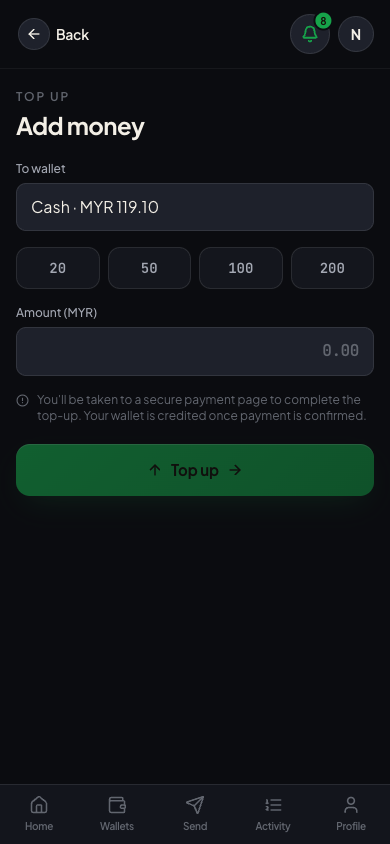

11. Top up

Add money to a wallet via the payment gateway. The user enters an amount; the app creates a payment intent and redirects to the gateway-hosted checkout. On return, the app polls until the webhook settles the credit.

APIs — Top-ups, Webhooks (request/response schemas + examples are on each operation page in the reference)

The flow:

1. POST /me/top-ups — create the payment intent for walletId + amount. Returns a redirectUrl to the gateway-hosted checkout; send the browser there.
2. GET /me/top-ups/{id} — poll on the return screen until terminal (SUCCEEDED / FAILED). History: GET /me/top-ups. (GET /wallets/{walletId}/top-ups is the tenant-backend view of the same data and is not callable with a user token.)
3. POST /payments/webhook/{provider}/{tenantCode} — gateway → wallet settlement callback; the authoritative credit. Your app never calls this and it is not in the published specs — it is listed so the sequence makes sense. Signed X-Webhook-Signature: sha256=<hex> = HMAC-SHA256 over the raw body, keyed by the profile's dedicated webhook secret; the wallet verifies (constant-time) and credits exactly once.
4. GET /payments/return/{provider}/{tenantCode}?intent={id} — a 302 back to the app's /topup/return page. Carries no money decision and is not signature-verified — status comes from the webhook + poll.

Operators can also generate a hosted link without a logged-in user via POST /wallets/{walletId}/top-up-link.

note

The amount entered is a hint; the gateway-captured amount (confirmed by the webhook) is what gets credited.

---

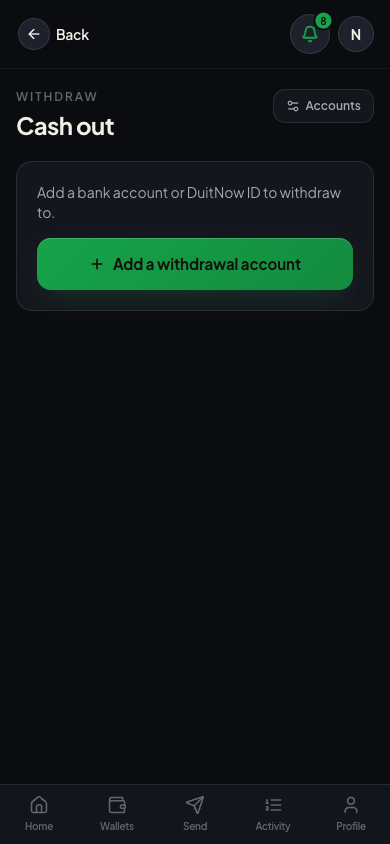

12. Withdraw

Cash out from a wallet to a saved bank / DuitNow destination. The user picks an amount and a saved account; the backend places a hold, then submits the payout. Status reaches a terminal value via the payout webhook (primary) with a reconciler poll as backstop.

APIs — Withdrawals, Withdrawal Accounts (request/response schemas + examples are on each operation page)

The flow:

1. POST /me/withdrawals (+ Idempotency-Key) — pick withdrawalAccountId + amount. Places the hold and submits the payout; returns the withdrawal in PENDING.
2. GET /me/withdrawals/{id} (and GET /me/withdrawals for the list) — track the lifecycle CREATED → PENDING → SUCCEEDED | FAILED | MANUAL_REVIEW. On SUCCEEDED the hold is captured; on FAILED it's released via a compensating credit.
3. POST /payouts/webhook/{provider}/{tenantCode} — gateway → wallet settlement callback (primary settle path). Signed X-Webhook-Signature: sha256=<hex> = HMAC-SHA256 over the raw body, keyed by the same dedicated webhook secret as payment webhooks (SCRUM-306). The wallet maps transaction_id → payoutReference, verifies, and settles once.

---

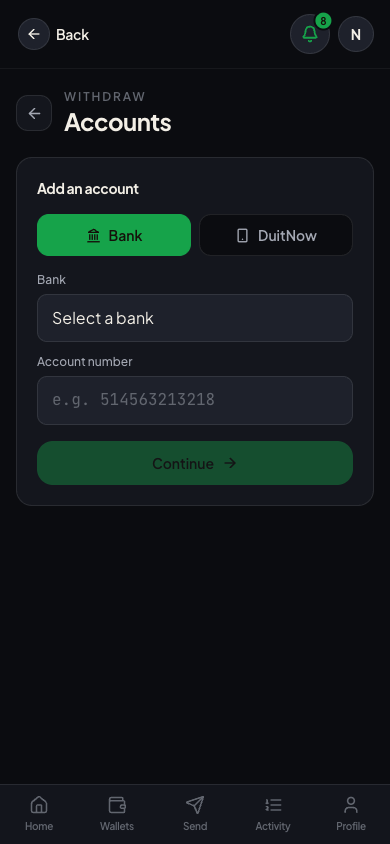

13. Withdrawal accounts

Manage saved payout destinations. Adding one runs a confirmation-of-payee enquiry against the gateway and stores the verified account-holder name. Requires a verified KYC profile (else 403).

APIs — Withdrawal Accounts, Banks (request/response schemas + examples are on each operation page)

• GET /banks — the bank / e-wallet picker (codes, display names, payout capability).
• POST /me/withdrawal-accounts/enquiry — pre-check a destination (returns verified + beneficiaryName) without saving.
• POST /me/withdrawal-accounts (+ Idempotency-Key) — save it. BANK route = bankCode+accountNumber; DuitNow route = proxyType+proxyValue (+countryCode). Runs the enquiry and persists VERIFIED / UNVERIFIED; the account number is returned masked.
• GET /me/withdrawal-accounts / DELETE /me/withdrawal-accounts/{id} — list / remove.

---

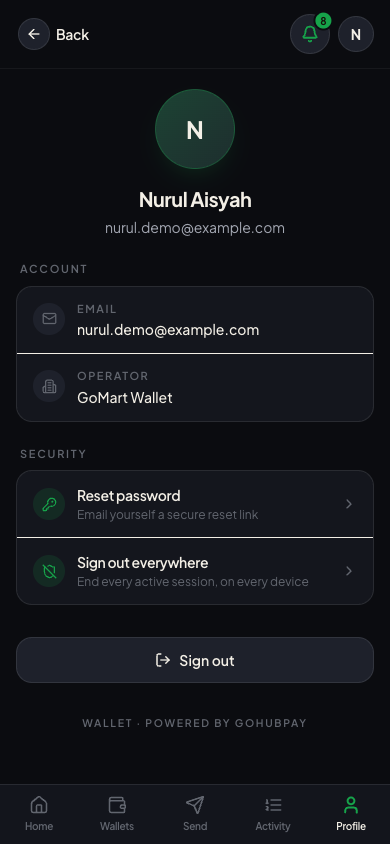

14. Profile

The user's identity (name, email, operator), plus security actions — reset password and sign-out-everywhere.

APIs — Identity, Authentication

• GET /users/{id} — the profile shown here. (GET /portal/iam/me exists but is an internal operator endpoint, not part of the published app surface — do not build against it.)
• POST /auth/forgot-password — "Reset password" emails a secure reset link.
• POST /auth/global-signout — "Sign out everywhere" ends every active session on every device.
• POST /auth/logout — the plain "Sign out" button.

---

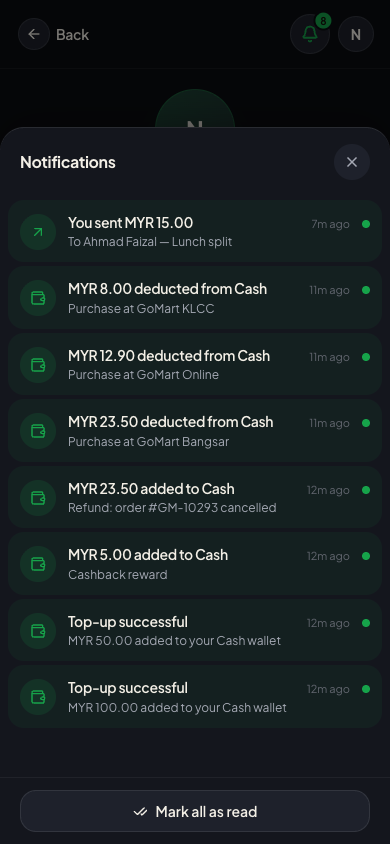

15. Notifications

The in-app inbox, opened from the bell. Each financial event (top-up, deduction, refund, transfer) generates a notification automatically.

APIs — Notifications

• GET /me/notifications — the inbox list.
• GET /me/notifications/unread-count — the bell badge.
• PATCH /me/notifications/{id}/read — mark one read (tapping it).
• POST /me/notifications/mark-all-read — the "Mark all as read" footer action.

---

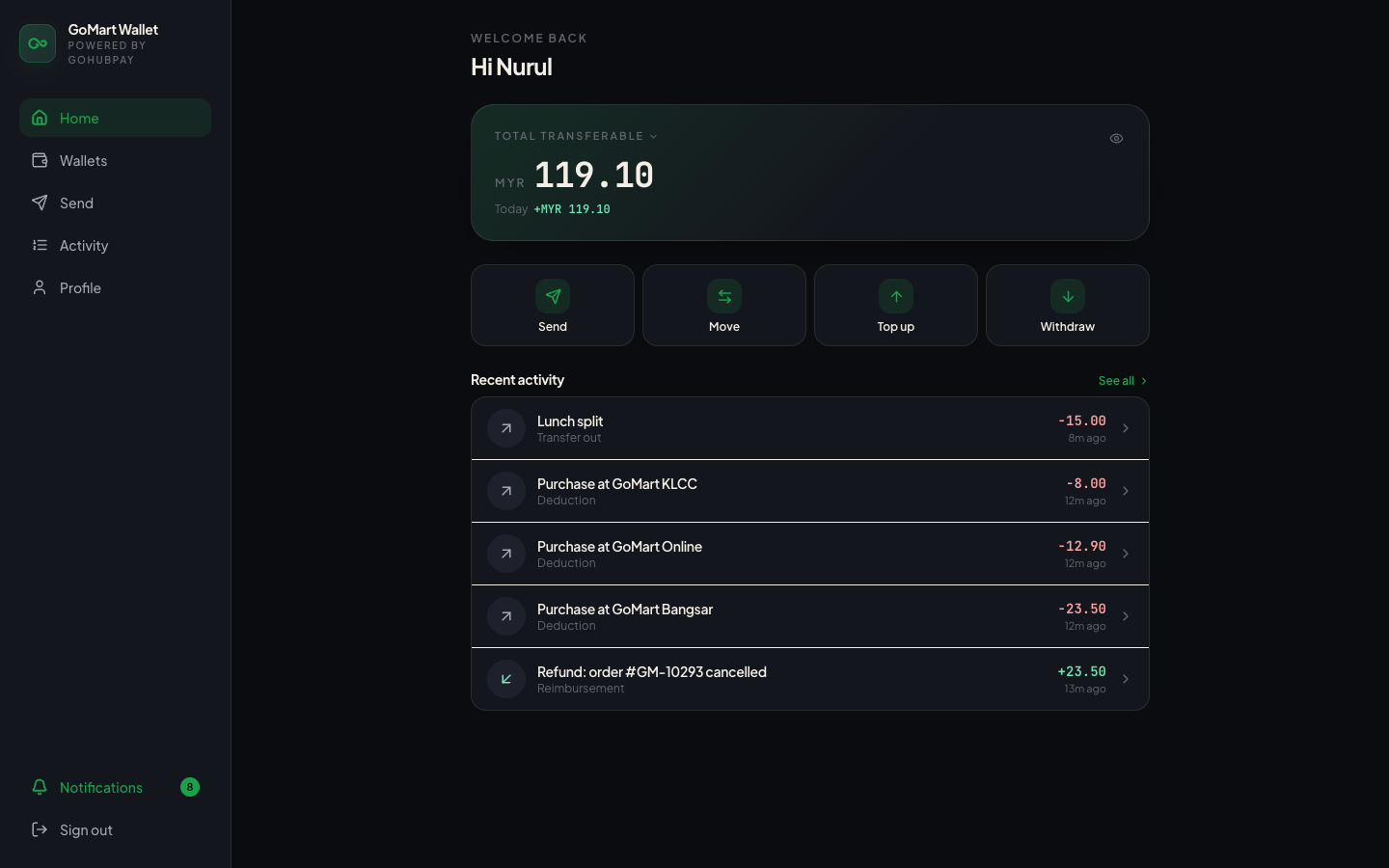

16. Responsive — desktop

The same single web app adapts to width: bottom-tab navigation on mobile, a persistent left sidebar on desktop (≥768px). It is one React tree — no separate desktop build, same APIs.

---

Endpoint cheat-sheet

Screen	Primary endpoint(s)
Login	POST /auth/login, POST /auth/invite/complete
Home	GET /wallets/summary, GET /transactions, GET /me/notifications/unread-count
Wallets	GET /wallets, GET /me/wallet-types
Wallet detail	GET /wallets/{id}, GET /wallets/{id}/balance, GET /wallets/{id}/funds
Activity	GET /transactions
Transaction detail	GET /transactions/{id}/detail
Send money	GET /transfers/lookup-recipient, POST /transfers/peer
Move funds	POST /transfers
Top up	POST /me/top-ups, GET /me/top-ups/{id}
Withdraw	POST /me/withdrawals, GET /me/withdrawals/{id}
Withdrawal accounts	GET /banks, POST /me/withdrawal-accounts, POST /me/withdrawal-accounts/enquiry
Profile	GET /users/{id}, POST /auth/global-signout
Notifications	GET /me/notifications, PATCH /me/notifications/{id}/read, POST /me/notifications/mark-all-read

For full request/response schemas of every endpoint, see the Wallet API Reference.
